Flowserve
ATOMAC VALVES
Lined Ball Valves
CORROSION-RESISTANT FLOW CONTROL
Industry-Leading Performance for Aggressive Chemical Applications
Flowserve is the world’s leader in the design and manufacture of corrosion-resistant fluoropolymer-lined valves. Atomac valves provide bubble-tight shutoff, low maintenance, no-leak stem seals and the safety assurance of a blowout-proof stem assembly. For performance, safety and reliability, Atomac is the valve of choice.
Corrosion-Resistant
Fluoropolymer lining protects against aggressive chemicals and corrosive fluids.
Bubble-Tight Shutoff
Ensures leak-free operation while minimizing contamination and product loss.
Low Maintenance Design
Engineered for long service life with minimal maintenance requirements.
Blowout-Proof Stem Assembly
Provides enhanced safety and dependable operation in demanding environments.
Versatile Configurations
Available in various designs to meet diverse industrial needs.
Product Categories
Select a Valve Type
Designed to Perform

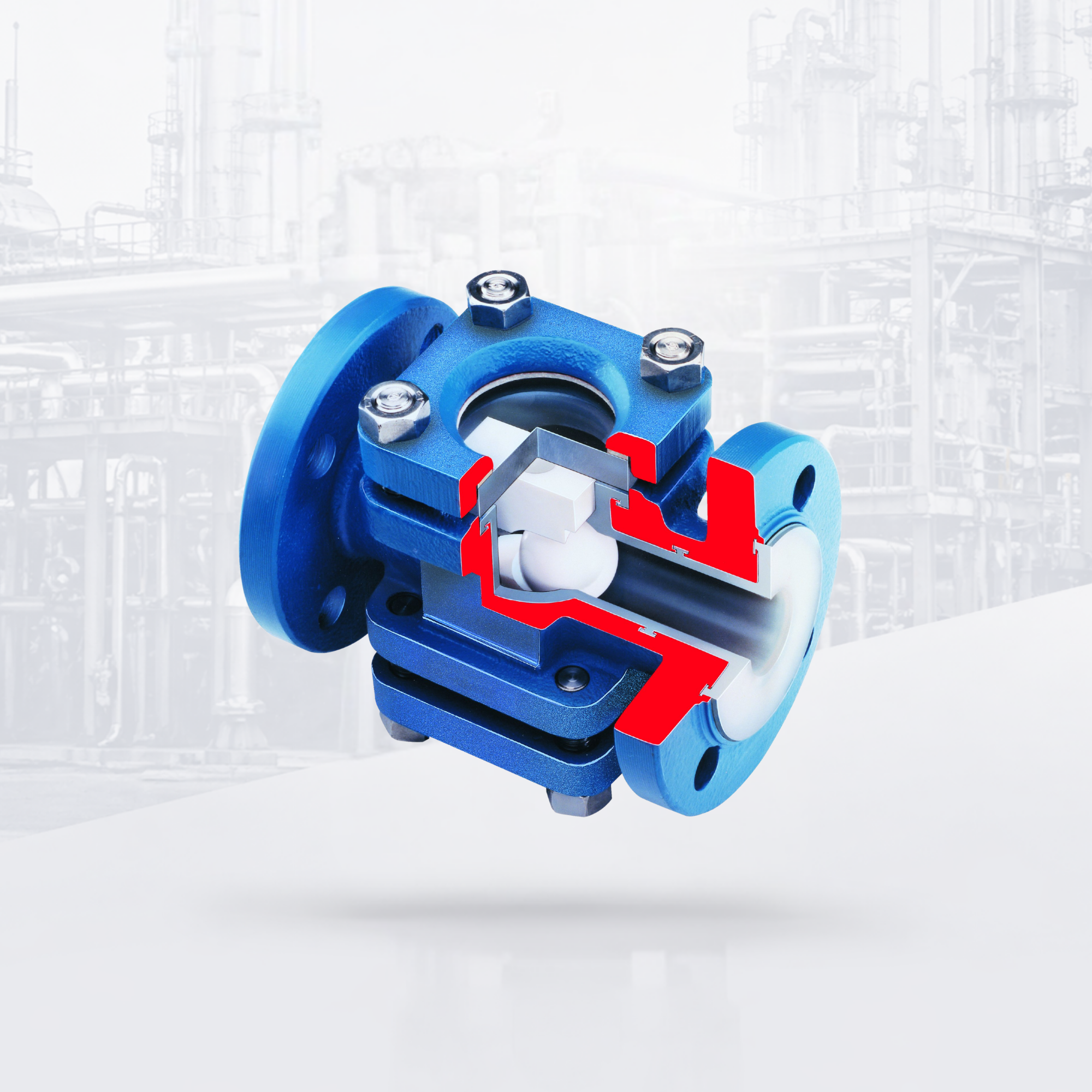

Atomac Lined Ball Valves
- AKH3 Standard Port Lined Ball Valves
- AKH2 Full Port Lined Ball Valves
- AKH2A ASME Full Port Lined Ball Valves
- AMP3 Three-Way Lined Ball Valves
- AKH5 Ceramic Lined Ball Valves
- V-Port Lined Control Valves
- AKH7-KP Lined Ball Valves for Gas Pipe Systems
- AKH6 Fully Lined Tank Drain Valves
Atomac Lined Ball Valves Specifications
Size Range
2″ to 24″
Pressure Classes
ANSI 150 to 300
Materials
WCB & SS
Trims
8 and 12* (*NACE)
Design
API 600
Testing
API 598
*Additional sizes, pressure classes, and materials available upon request.
Precision Sealing
Atomac Lined Sampling Valves & Sight Glass Solutions
- APN/T Lined Sampling Valves
- APN/SG Lined Sampling Valves with Sight Glass
- ASG Lined Sight Glass
Atomac Sampling Valves Specifications
Size Range
2″ to 24″
Pressure Classes
ANSI 150 to 300
Materials
WCB & SS
Trims
8 and 12* (*NACE)
Design
API 623
Testing
API 598
*Additional sizes, pressure classes, and materials available upon request.
Reliable Backflow Prevention
Lined Check Valves and Strainers
- ARV2 and ARL Lined Check Valves
- ARV/SG Lined Check/Sight Glass Combination
- ASF Lined Strainer
Atomac Check Valves Specifications
Size Range
2″ to 24″
Pressure Classes
ANSI 150 to 300
Materials
WCB & SS
Trims
8 and 12* (*NACE)
Design
API 594
Testing
API 598
*Additional sizes, pressure classes, and materials available upon request.
