Standard industrial valves do not always meet every project requirement straight out of the box. EPC contractors, distributors, plant engineers, and maintenance teams often need valves configured to match specific piping layouts, owner standards, operating conditions, accessibility needs, and documentation requirements. That is where valve modifications add value.
Industrial valve modifications adapt an existing valve platform to meet job-specific specifications without requiring a completely new valve design. Common modifications include end-connection changes, gear operators, trim upgrades, bypass assemblies, bleed connections, chainwheels, stem extensions, coatings, and actuator-mounting provisions. When these requirements are identified early, modified valves can help project teams reduce field rework, simplify installation, support safer operation, and avoid unnecessary lead time delays.
What Is a Valve Modification?
A valve modification is an engineered change made to a standard valve so it can meet a specific project or application requirement. This does not usually mean redesigning the valve or changing its basic operating principle. Instead, it means adapting a proven valve configuration while maintaining the required pressure rating, sealing performance, material compatibility, and applicable industry standards.
Valve modifications may affect how the valve connects to piping, how it is operated, how it handles process conditions, or how maintenance teams access and verify the valve in service. For example, a standard gate valve may require a different end connection, upgraded trim, a gear operator, or a bypass assembly before it can be approved for a refinery, chemical plant, power facility, or terminal project.
Why Valve Modifications Are Common in Industrial Projects
No two industrial facilities are designed exactly alike. Even plants operating within the same industry often follow different engineering philosophies, owner standards, maintenance practices, and piping specifications.
Standard Valve Designs Often Need Adjustment
A valve that meets every requirement for one project may require several modifications before it is approved for another, despite performing the same basic function. This is particularly common on projects managed by EPC contractors, where equipment must comply with detailed project specifications that define everything from connection types and material selection to documentation, testing, and maintenance accessibility.
Varying Internal Standards
Plant owners may also establish internal standards based on decades of operating experience, requiring valves to incorporate features that simplify maintenance or improve operational consistency across the facility.
Valve modifications bridge the gap between standard manufacturing and project-specific requirements. Rather than designing an entirely new valve for every application, manufacturers can adapt established valve platforms through carefully engineered changes that preserve the original design’s pressure rating, sealing capability, and mechanical integrity.
Types of Modification
Industrial valves are often adapted to meet project-specific requirements rather than supplied in a standard configuration. The most common modifications usually involve connection type, operating method, trim materials, pressure equalization, isolation safety, and accessibility.
Reviewing these needs early helps buyers select a valve that best fits the piping system, operating conditions, and maintenance plan without unnecessary redesign.
| Modification Type | Primary Purpose | Typical Benefit |
| End connection changes | Match the piping specification | Faster installation and fewer adapters |
| Gear operators | Reduce manual operating torque | Safer, more controlled manual operation |
| Trim material upgrades | Improve wear and corrosion resistance | Longer service life in demanding service |
| Bypass assemblies | Equalize pressure before opening | Lower operating force and valve stress |
| Bleed connections | Verify isolation and release trapped pressure | Safer maintenance and lockout procedures |
| Chainwheels | Operate elevated valves | Ground-level access and reduced work-at-height needs |
End Connections
One of the most common valve modifications is changing the end connection. Although this may seem minor, it has a direct impact on installation, system integrity, and maintenance. The valve must match the piping specification exactly, or the project may require adapters, rework, or additional field labor.
Different services often call for different connection types. Refineries and high-pressure systems may specify butt weld ends, while water treatment and general industrial applications often use flanged ends for easier removal during shutdowns. Threaded and socket-weld connections are still common in smaller-bore piping where they suit the pressure rating and installation method.
Gear Operators
As valve size increases, manual operation becomes more difficult. Higher torque, larger sealing surfaces, and greater friction can make direct hand operation impractical, especially in demanding industrial services.
Gear operators solve this problem by adding a mechanical advantage between the handwheel and the valve stem. The gearbox reduces the force needed to operate the valve, even though it requires more turns to open or close it fully. This makes the operation safer and more controlled.
Gear operators are commonly used on large butterfly valves, plug valves, gate valves, and high-pressure ball valves. They may also include locking devices, position indicators, weather protection, or custom gear ratios, depending on the application.
Trim Material
The trim does the actual work of controlling flow and maintaining shutoff, so it often has the greatest effect on valve life. Components such as the stem, ball, disc, plug, and seats are exposed directly to the process fluid and experience the most wear.
Material selection depends on the service conditions. Stainless steel may be suitable for many chemical applications, while duplex and super duplex alloys offer better strength and corrosion resistance in more aggressive environments. Nickel-based alloys are often used in highly corrosive services, and hard-facing materials such as Stellite or tungsten carbide can improve resistance to erosion and wear.
Bypass Assemblies
Opening a large isolation valve against a high-pressure differential can place unnecessary stress on the valve and make operation difficult. In some systems, it can also create pressure shock or excessive seat loading.
A bypass assembly helps solve this by routing fluid around the main valve through a smaller auxiliary valve. Operators can use the bypass to equalize pressure before opening the primary valve, which reduces operating force and lowers mechanical stress.
These assemblies are common in steam systems, high-pressure pipelines, and process vessels. Many projects require them to be factory-installed so the piping, fittings, and valves are integrated, tested, and inspected before delivery.
Bleed Connections
A bleed connection allows trapped pressure to be released, monitored, or verified before maintenance. Closing an isolation valve does not always confirm that pressure has been fully removed from the line. Bleed points provide a controlled way to vent, drain, depressurize, or verify pressure between isolation points.
They are especially valuable in double block and bleed arrangements, where confirming zero pressure between two isolation valves helps support safer maintenance. In some facilities, bleed connections may also support Zero Energy Demonstration or lockout/tagout procedures by allowing personnel to verify that stored pressure has been relieved. Because bleed connections are part of the pressure boundary, they must be designed and manufactured with the same attention to safety and compliance as the valve itself.
Chainwheels
Many manually operated valves are installed in locations that are difficult to reach, such as elevated pipe racks, overhead lines, or congested equipment areas. Without a suitable operating aid, routine valve movement may require ladders or temporary access equipment.
A chainwheel provides a practical solution by allowing operators to open or close the valve from ground level. A continuous chain transfers movement to the handwheel or gearbox, improving accessibility and reducing the need to work at height.
Other Project-Specific Valve Modifications
Some modifications are less extensive than gear operators or bypass assemblies but can still have a major impact on installation, maintenance, and compliance.
Common examples include actuator mounting provisions, locking devices, fire-safe construction, cryogenic extensions, stem extensions, protective coatings, permanent identification tags, material traceability, oxygen or chlorine cleaning, and additional testing.
These details may seem minor, but they can prevent delays during inspection, commissioning, and site acceptance. They also reduce the need for field changes after the valve has already arrived on site.
Benefits Of Early Planning
Identifying valve modification requirements early can help prevent procurement delays. When changes are discovered after an order is placed, the project may require revised drawings, updated documentation, additional inspection steps, or production changes. Even a simple modification can affect the schedule if introduced after fabrication has begun.
Early coordination among engineering teams, distributors, and valve suppliers enables project requirements to be reviewed during the quotation process. This helps confirm the correct connection type, materials, accessories, testing requirements, and documentation before the valve reaches the job site. The result is fewer field modifications, smoother installation, and lower risk during commissioning.
How QRC Valves Handles Valve Modifications
Meeting project specifications often requires more than selecting the right valve type. QRC Valves is a leading valve supplier in North America and provides certified valve products and engineered valve modifications that align with customer specifications and applicable industry standards.
QRC Valves works closely with client teams to help ensure every valve is configured for its intended service, from end connection changes and trim material upgrades to gear operators, bypass assemblies, bleed connections, chainwheels, and other project-specific modifications before it reaches the job site. Feel free to get in touch with QRC Valves for further guidance and view some of our in-house modifications.
Frequently Asked Questions on Valve Modifications
Can valve modifications affect warranty coverage?
Yes. Warranty coverage may depend on whether the modification is performed by an approved manufacturer, supplier, or qualified modification facility. Factory-supported or supplier-managed modifications are generally preferred because they help maintain inspection control, documentation, and product accountability.
Should modified valves be tested before shipment?
Yes. Modified valves should be inspected and tested in accordance with applicable project, manufacturer, and industry requirements before shipment. Testing may include pressure testing, seat testing, material verification, dimensional checks, or other customer-specified inspections.
Can existing valves in the field be modified?

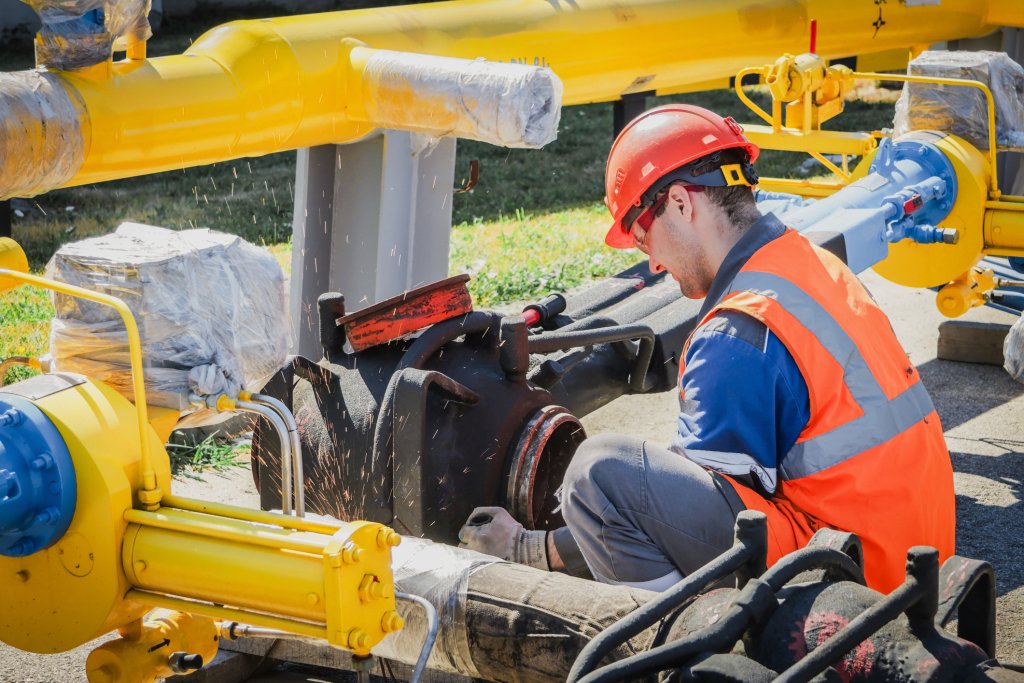

Some existing valves can be modified in the field, but it depends on the valve design, pressure boundary, service conditions, and required change. Critical modifications are often better handled before shipment to reduce risk, maintain documentation, and avoid installation delays.
What information should buyers provide when requesting valve modifications?
Buyers should provide the valve type, size, pressure class, material, service conditions, piping specification, operating requirements, project standards, required accessories, testing needs, and documentation requirements. The more complete the information, the easier it is to configure the valve correctly.
